EVERA VECTOR MAX

Multi-Axis Motorised Photobiomodulation System

---

Performance Summary

The Evera Vector Max is a high-capacity photobiomodulation system engineered for precise full-body positioning in high-throughput commercial environments.
It integrates a multi-axis motorised platform with a high-density 4,800-chip LED array, enabling controlled exposure alignment, consistent irradiance delivery, and efficient client throughput.

---

Key Differentiators

• 4,800-chip high-density LED array for uniform photon distribution
• Multi-axis motorised positioning with 360° rotational capability
• Electric lift system for controlled vertical and horizontal alignment
• UK Lucite® acrylic for high optical transmission (~99%)
• Space-efficient foldable structure for commercial deployment

---

Technical Specifications

---

Wavelength Spectrum

633nm / 660nm / 850nm / 940nm

• Balanced multi-wavelength configuration for layered tissue interaction
• Supports both surface-level and deeper tissue exposure

---

LED Configuration

4,800 × EPISTAR® 0.2W LED chips

• High-density array for consistent photon distribution
• Reduces exposure variability across treatment area

---

System Power

750W total output

• Designed for stable, continuous commercial operation

---

Irradiance Output

High-density photon flux (distributed across 4,800-point array)

• Maintains consistent exposure across full-body positioning
• Minimises shadowing through controlled alignment

---

Coverage Area

Full-body exposure system

• Designed for uniform irradiation across multiple body positions
• Maintains consistent distance between light source and user

---

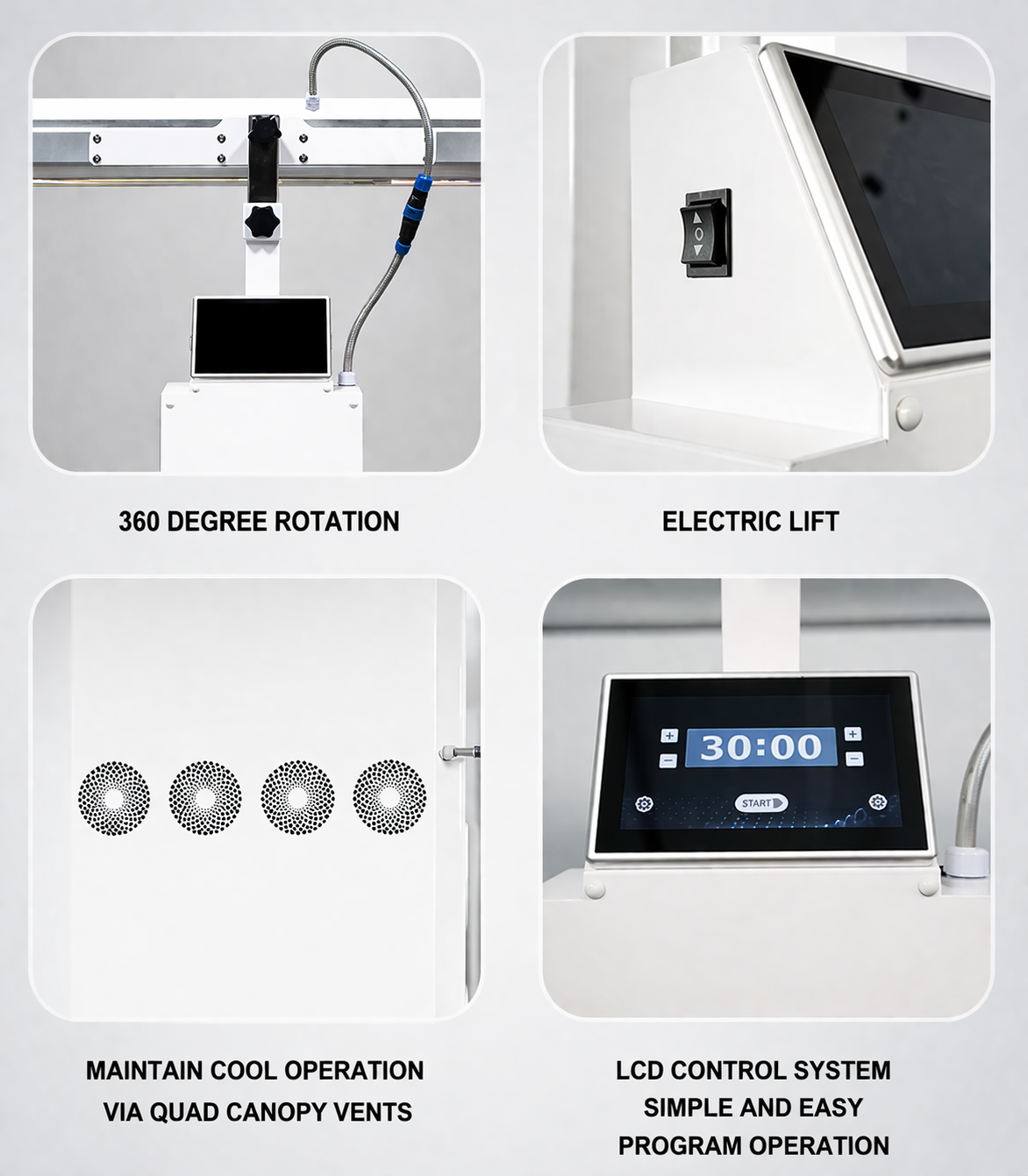

Mechanical Functionality

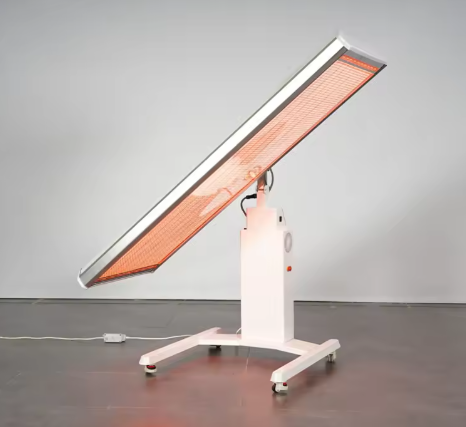

• 360° rotational positioning system
• One-button motorised elevation control
• Multi-axis alignment capability
• Enables precise anatomical targeting
• Reduces manual repositioning between sessions

---

Structural Design

• Reinforced industrial steel frame (~102kg)
• Chassis dimensions: 1836mm × 830mm
• Adjustable height range: 1042mm – 1342mm

---

Mobility System

• Heavy-duty universal wheels
• Stabilised base for secure positioning during operation

---

Materials & Construction

• UK Lucite® optical acrylic (~99% transmittance)
• Industrial-grade housing and components
• Designed for continuous operational use

---

Thermal Management

• 4 active cooling fans
• Maintains internal temperature stability during extended use

---

Electrical & Interface

• Integrated physical touch control panel
• Commercial power compatibility

---

Durability

• LED lifespan: 100,000+ hours
• Engineered for high-frequency commercial environments

---

Compliance

SAA / FDA Registered / TGA compliant components

• Suitable for regulated and professional environments

---

Operational Profile

• Session duration: 10–20 minutes
• Designed for high-throughput usage
• Reduces manual positioning time between clients
