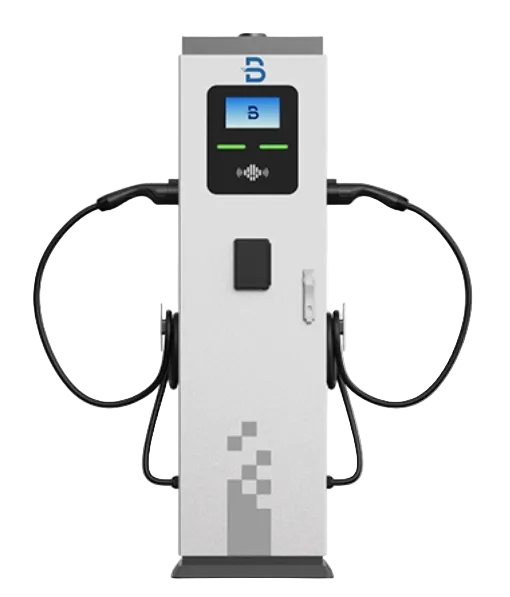

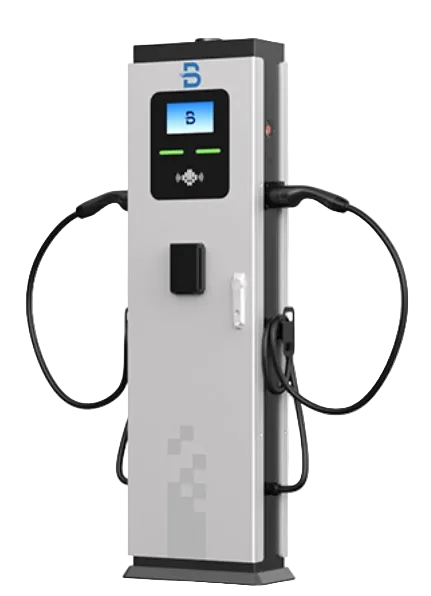

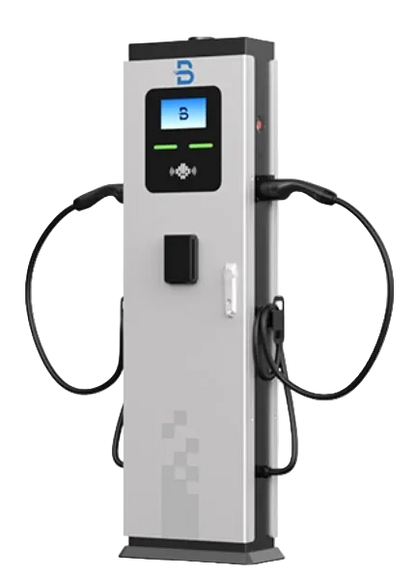

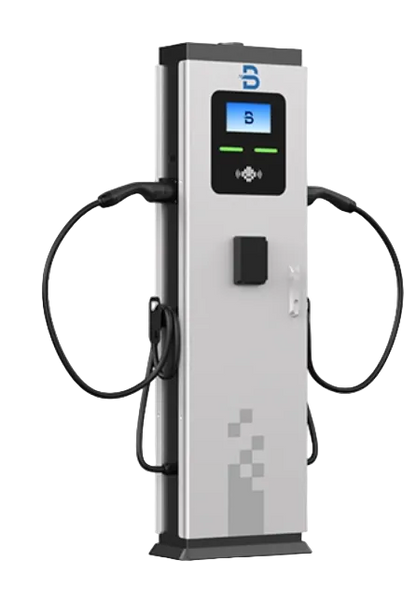

Beny Commercial 3-Phase AC EV Charging Station (22kW + 22kW)

The Beny Commercial 3-Phase AC EV Charging Station (22kW + 22kW) — Flagship 2026 Model

The Beny Commercial 3-Phase AC EV Charging Station (22kW + 22kW) is our flagship AC charging solution for 2026, engineered for operators who require the highest level of performance, reliability, and monetisation capability. Designed for large-scale commercial and public charging deployments, this unit represents the top of our BENY AC charger range.

Purpose-built for shopping centres, councils, hotels, gyms, fleet depots, and paid public car parks, it delivers simultaneous 22kW charging across two tethered ports using a robust 3-phase 400V supply. With POS payment support, enterprise-grade protections, and full smart connectivity, it is ideal for sites planning long-term EV infrastructure that is future-ready and revenue-generating.

Key Features

• Flagship 2026 BENY Model — top-of-range commercial AC charger
• Power: Up to 2 × 22kW simultaneous charging
• Electrical: 3-Phase AC (400V ±10%), 32A
• Charging Protocol: OCPP 1.6J (platform-agnostic)
• Compatibility: All Type 2 electric vehicles
• Payment Ready: POS machine support and third-party backend integration
• Connectivity: Wi-Fi, Ethernet, Bluetooth, and 4G
• User Interface: 7-inch LCD display
• Metering: Built-in MID-certified energy meter
• Protection: Integrated RCCB, MCB, SPD, and DC leakage protection
• Enclosure: IP65-rated iron enclosure for permanent outdoor installation
• Access Control: RFID authentication included
• Cables: Dual 5m tethered Type 2 cables

Compliance

Certified to CE and RCM standards.
Complete technical and compliance documentation available upon request.

Model: BCPCV-CT2M-P (Floor-Mounted, 3-Phase)

📦 Shipping (EXW / FOB Shenzhen)

Shipping is not included at checkout. After purchase, you will receive:

• Warehouse pickup address
• Pallet dimensions & weight
• HS Code (8504.40.90)
• Packaging details

You may use any freight forwarder (DHL, FedEx, UPS, Maersk, etc.).
Your freight forwarder will coordinate directly with our warehouse for collection.

💡 Optional: DDP shipping (delivered to your site) is available upon request — contact us for a quote.
